ALL GEARED SHAPING MACHINE

Our Products Range

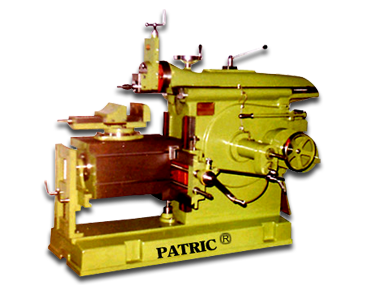

All Geared Shaping Machine

Technical Specification for All Geared Shaping Machine

Particulars Stroke Stroke Stroke
Double Line 457 MM 18 Inch 610 MM 24 Inch 762 MM 30 Inch
Length of the stroke 457 18 610 24 762 30
Length of Ram without tool slide 1016 40 1270 50 1524 60
Ram bearing in column 711 28 856 341/2 966 68
Ram bearing width 241 9 1/2 290 11 1/2 330 13
Tool slide Traverse 102 4 152 6 177 7
Horizontal Traverse of Table 457 18 556 22 660 26
Vertical Traverse of Table 329 13 370 15 430 17
Minimum Distance From Table to Ram 25 1 51 2 76 3
Top Clamping surface of Table 279×432 11×27 556×517 14×20 495×558 15×22
Length of Main Slide 700 27 887 35 1/2 1016 40
Width of Main Slide 280 11 1/2 316 12 1/2 330 13
Size of Base Plate 1308 x 151 51 x 20 1/2 1626×585 64×23 1867×647 73 1/2 x 25 1/2
Width of Swivel Vice Jaws 203 8 229 9 254 10
Opening of Swivel Vice Jaws 2208 10 305 12 356 14
Overall Size of Machine 1652x1524x914 65x36x60 2210x1600x1130 87x44x63 2438x1777x1421 96x56x70
No of Speeds
4
4
4
Range of speeds
16-28-40-65
2210 x 1600 x 1130
8-16-30-48
Approximate Net Weight Kg. 1050 Lbs. 2315 Kg. 2000 Lbs. 4409 Kg. 2250 Lbs. 4961
Motor Required for Cone Pulley Drive 2 H.P R.P.M. 1440 3 H.P. R.P.M. 1440 5 H.P. R.P.M. 1440
Motor Required for All Geared Drive 2 H.P. R.P.M. 960 3 H.P. R.P.M. 960 5 H.P. R.P.M. 960

Teachnical Features

– These machines are also available with Swiveling as well as Fixed Type Tables.
– Keeping pace with today’s Technological Developments, we reserve the right to change the designs or specifications of the machines.
STANDARDS ACCESSORIES :- Swiveling vice, crank handle, motor pulley.
ACCESSORIES AT EXTRA COST :- V. belts, electric motor switch & starter, key way cutting attachment tool lifting attachment, automatic lubrication system, forced lub.
